Energy efficiency

AEInnova

A battery-free Internet of things (IoT) device (hardware and software) that improves productivity.

Relevant markets

Status

Starting Sales
AEInnova

Commercialised by

AEInnova

Bellaterra

Pare Llaurador Street, 169, , 08224 Terrassa, Barcelona, Spain

Sustainable developement goals
SDG 07SDG 08SDG 12SDG 13

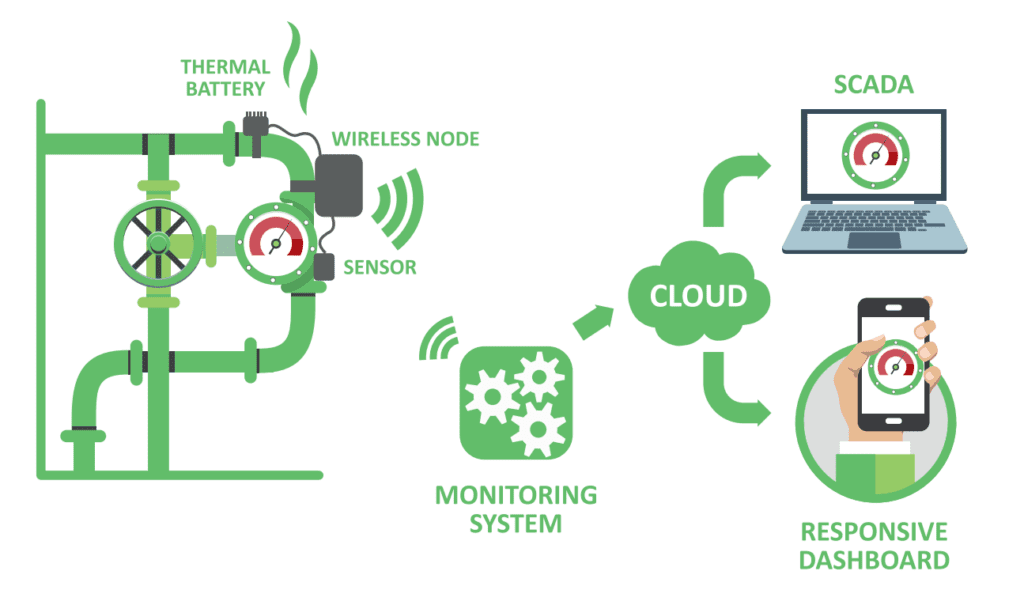

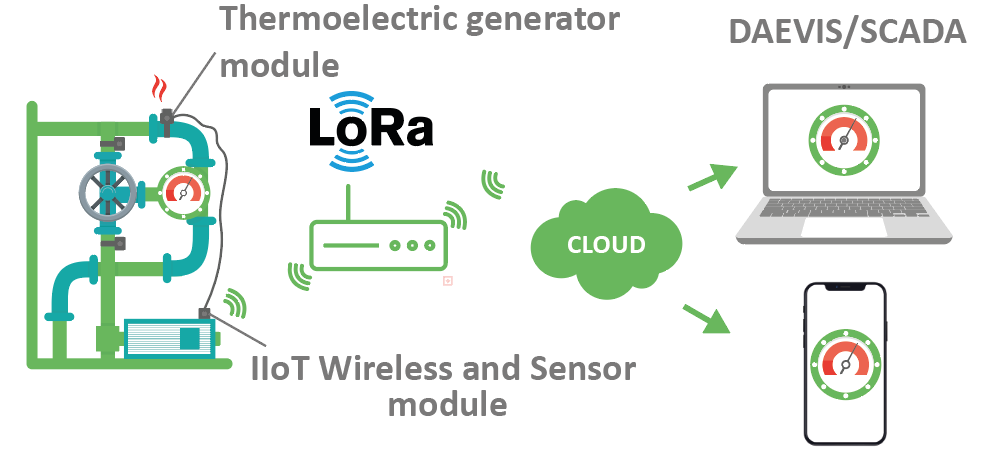

Wireless long-range edge computing IoT architecture powered by waste heat

Visit site

The need

Oil and gas, cement, iron and steel industries are all highly intensive in energy consumption. What’s more, up to 65% of this energy is lost in waste heat in the heat conversion process. This increases their C02 and greenhouse gas emissions.

The solution

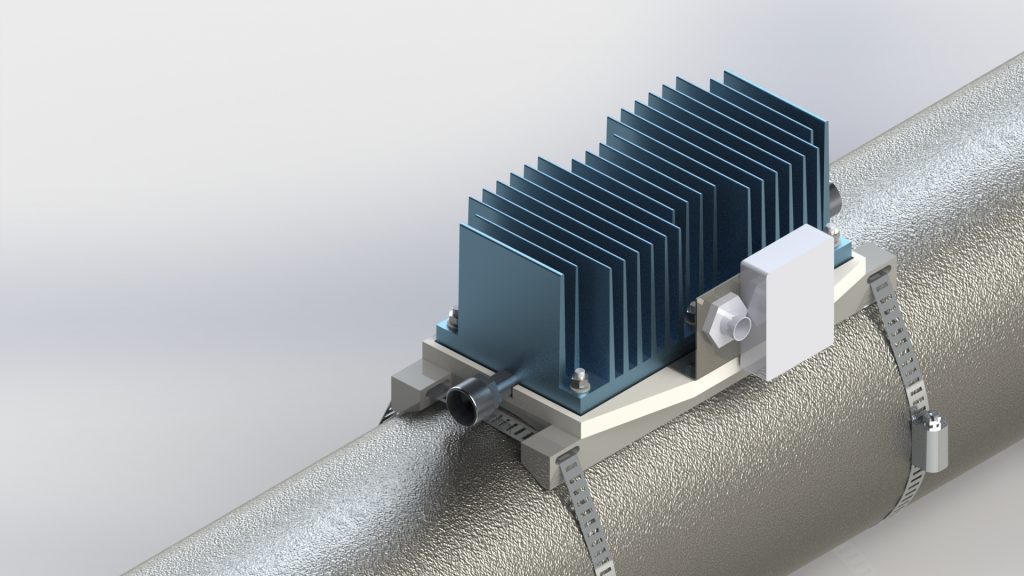

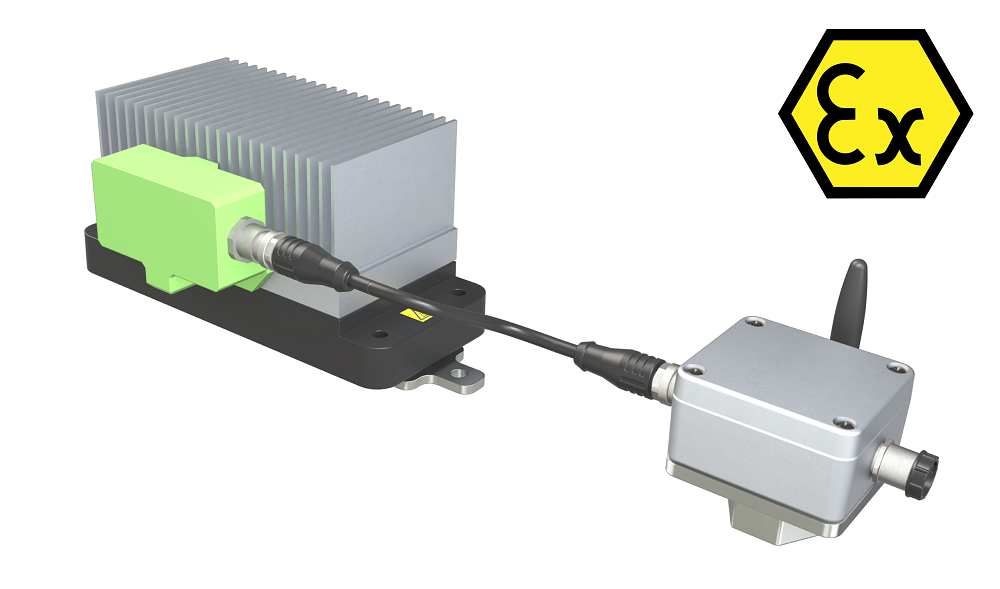

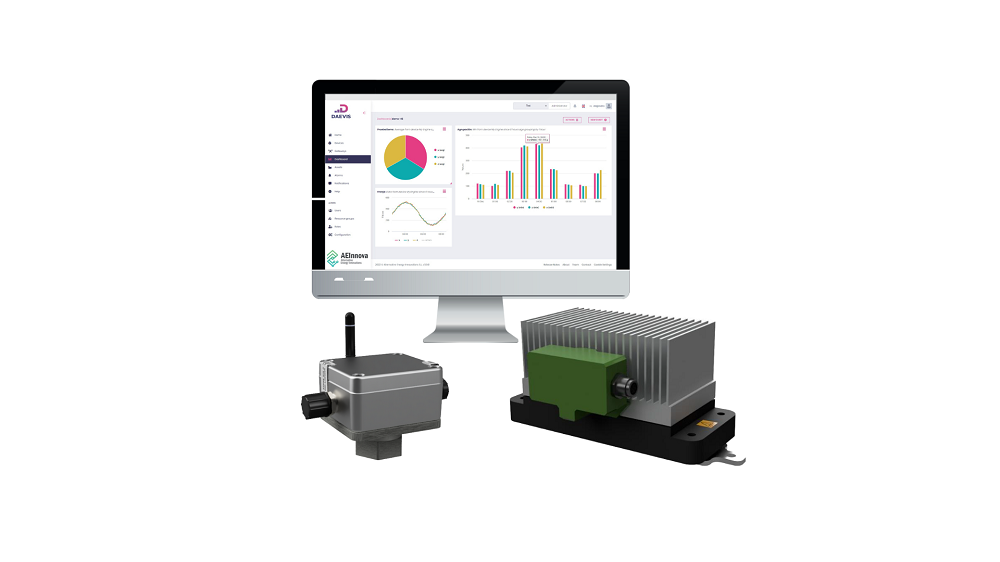

A battery-free internet of things (IoT) device comprised of hardware and software boosting productivity. The wireless, zero-maintenance device is based on a thermal converter and adaptable to any hot surface. It can produce from a few mW to up to 700mW of power generation (50oC – 180oC) and is suitable for different wireless long-range protocols. It has up to to 64 sensors: vibration, temperature and ultrasound.

The value proposition

  • Drastically reduces the costs of industrial monitoring.
  • Estimated operative life of over 20 years.
  • Flexible and plug and play.
  • Maintenance free.
  • Real time wireless.
  • Edge computing IoT device based on a system on a chip (SoC).

Interested? Contact us
